Binding: Electronics
Brand: Asus
EAN: 0610839153886
Is Autographed: 0
Is Memorabilia: 0
Weight: 800 hundredths-pounds
Width: 12 inches
Label: Asus
Manufacturer: Asus

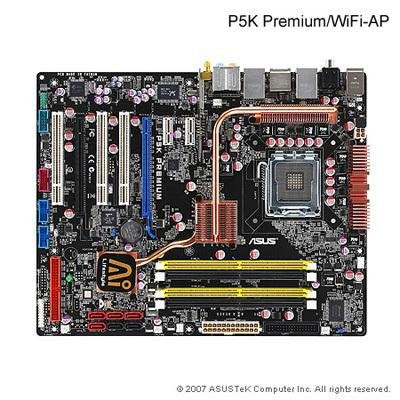

Model: P5K PREMIUM/WIFI-AP
Modem Description: None
Packaged Height: 320 hundredths-inches
Packaged Length: 1330 hundredths-inches
Packaged Weight: 460 hundredths-pounds
Packaged Width: 1220 hundredths-inches
Processor Count: 0
Publisher: Asus
Studio: Asus
System Bus Speed: 1333 unknown-units
System Memory Size: 0 MB
Feature:
- Box Contents - ASUS P5KPREMWIFI Desktop Board, UltraDMA 133/100/66 cable, FDD cable, 4 x Serial ATA cables, 1 x 2-port Serial ATA power cable, I/O Shield, User's manual, 3 in 1 Q-connector, 1 x 2-port USB2.0, 1-port IEEE1394 module, ASUS WiFi-AP Solo omni-directional antenna, CD Drivers
- Support for the Intel Core 2 Quad and Intel Core 2 Duo processors, 1333 / 1066 / 800 MHz system bus in the LGA775 package
- Four DIMM sockets, designed to support up to 8 GB of DDR2 1066 / 800 / 667 , non-ECC, un-buffered memory Dual channel memory architecture
- 6 x SATA 3.0 Gb/s ports, supports RAID 0, 1, 5 and 10
- 1 x UltraDMA 133/100/66 for up to 2 PATA devices
Product Description:
This new motherboard utilizes specially-designed technologies that provides overclocking up to 100% faster speeds in water-cooled systems; and stays 40ºC (72ºF) lower than other thermal solutions. The P5K Premium also comes equipped with built-in native DDR2 1066 memory support that can be overclocked to DDR2 1400. Additionally, it is able to provide users with stable CPU power and 30% reduced power ripples during heavy loading; while signal delivery is enhanced with low cross-talk for even faster speeds. Furthermore, it provides cooler operations, enhanced 8-channel HD Audio with built-in AI Audio 2 and a host of innovative tools and features. 2 x External SATA 3.0 Gb/s port, supports SATA RAID 0, 1 and JBOD 2 x PCI-E x16 supports CrossFire Technology, 3 x PCI Dual Gigabit LAN controllers, featuring AI NET2, Marvell88E8056 PCI-E Gigabit LAN controllers, RealtekRTL8110SC PCI Gigabit LAN controller ASUS WiFi-AP Solo 54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps IEEE 802.11b ADI AD1988B 8-channel High Definition Audio CODEC Back Panel I/O Ports - 1 x PS/2 Keyboard, 1 x S/PDIF Out (Coaxial + Optical), 2 x External SATA, 1 x IEEE1394a, 2 x RJ45 port, 6 x USB 2.0/1.1, 1 x WiFi-AP Solo antenna jack, 8-channel Audio I/O ATX form factor
Customer Reviews:
 A few thigs to know first, 2008-11-12
This motherboard is great.
My build:-
Processor: Intel Core2Duo E8400 45nm - 3Ghz
Memory: Corsair Dominator 4GB (1GBx4) @ 1066Mhz
Graphics: XFX 8600 GT 512MB
Things you should know first:-
1- For the first boot, you will need a DDR2 800Mhz RAM. Because the motherboard doesn't auto detect the 1066Mhz RAM. That 800Mhz RAM will be needed every time you flash your BIOS, unless the update released solves this issue.
2- The first thing you MUST do when you buy this board is to UPDATE TO THE LATEST BIOS.
When i first booted that board it gave me a message that the processor is not recognized (because the processor is a 45nm). So update the BIOS and this will be solved.
3- Installing the Q-Fans.. when you grab the Q-Fan.. a small booklet comes with it in its bag.. Just throw this small booklet in the trash can because it is wrong.. go with the instructions printed in the motherboards' manual for installing the Q-Fans.
Until now ... I haven't used this motherboard well enough to give any review about software stuff.. but i will sure update my review when possible.
|
